• Ideal alternative where Sliding Space is not available for gate, there Swing Gates are applicable.
• Creatively fabricated Swing Gates are made with Square or Rectangle Pipe mostly installed in the residential or commercial project.
• Swing Gate can be fabricated as per our Standard Design or Client Design. Automation System depends upon the Width and weight of Swing Gate.
• Automation system is available for gate span from 3.0 Meter to 10.0 Meter.

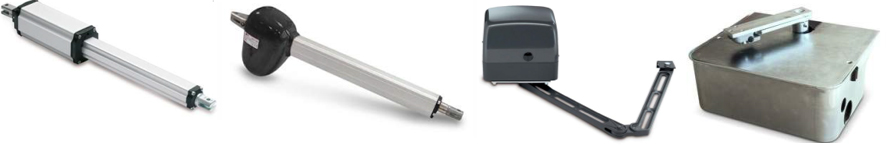

• Model is available with Articulated Arm for wide opening and Underground Motor with adjustable torque.

Features

• Sturdy aluminum structure
• Rod stroke mm 300 - mm 400 - mm 600
• Stainless steel rod with dust scraper or stainless steel rod with dust scraper.
• Standard opening limit switch (optional in closing)
• Opening & closing time is 15 to 25 seconds for 90 degree.
• Very quiet operation
• High-performance electric motor. . Also model is available with electric motor in bath of oil.
• Thermal cut out 140°
• Lithium grease lubrications of mechanical parts against corrosion, oxidation and rust 120° opening
• Quick installation with multi-position brackets and cover for brackets in technopolimers
• Anti-squashing system & slowing down function (en 12453)
• Power supply 230 V - 24 V
• Manual release with key
• Degree of protection – IP 55
